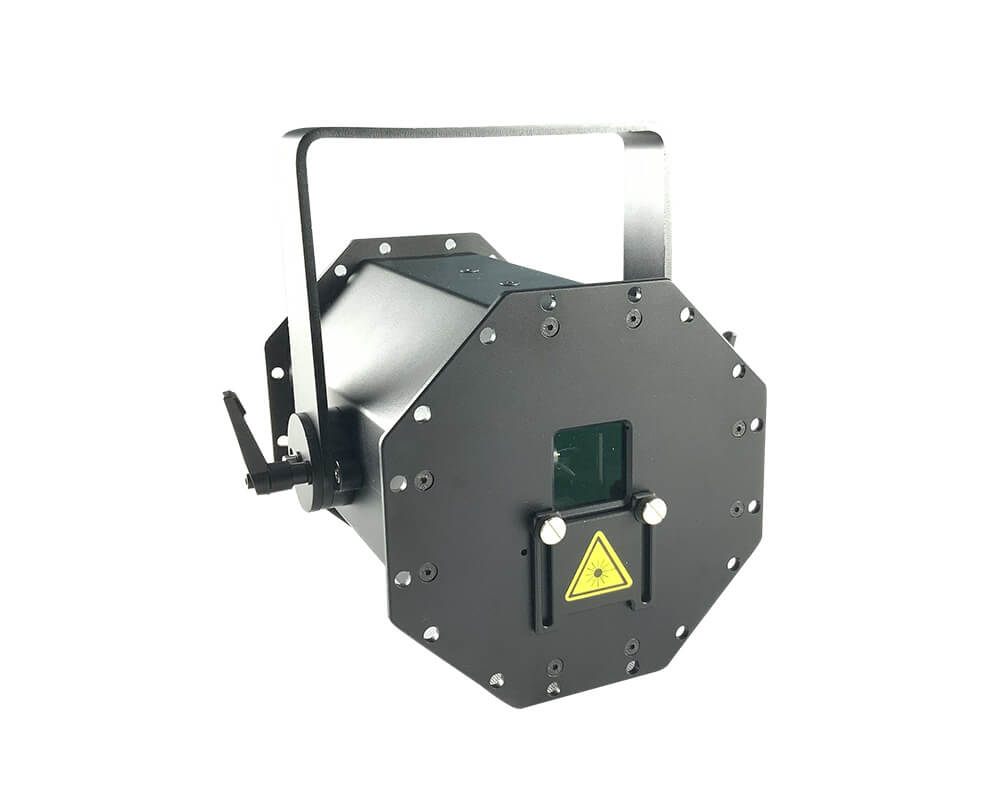

PT3

Compact in size, being a fully equipped 300mW full-colour RGB laser display system.

This system is designed to work as a multi-head laser projector and can be assembled into virtually any geometrical formation - offering phenomenal graphical performance.

With our PT3 Series, you can now easily create all the super-cool laser effects that seemed impossible to accomplish before.

Product Parameters

Video Presentation

Data Download

Specification

Models	PT300-RGB	PT600-RGB	PT1000-RGB	PT2000-RGB	PT3000-RGB
Beam Size@Aperture[mm]	ca.5mm
Divergence（full angle）	2mrad
System control	Auto, Sound control, SD card, DMX512, ILDA
Scanning System	AT20 20kpps@8°, MAX±20°
Wavelength [nm]	R/638 G/520 B/445
Laser Power [mW]	100mW 100mW 100mW	100mW 100mW 400mW	300mW 100mW 600mW	400mW 500mW 1000mW	650mW 900mW 1500mW
Modulation [kHz]	TTL
Power Supply	100~240V 50~60Hz
Power Consumption [W]	＜80W
Weight [kg]	3.84Kg
Size [WxHxD, mm]	183183220mm
Cooling:	Heatsink+Casting Aluminum Housing+Fans (at bottom)
Packaging:	Carton+foam

PT3

A truly unique laser that can work with a multi-head laser projector.
Output 300mW-3000mW ▏diode-based laser systems
