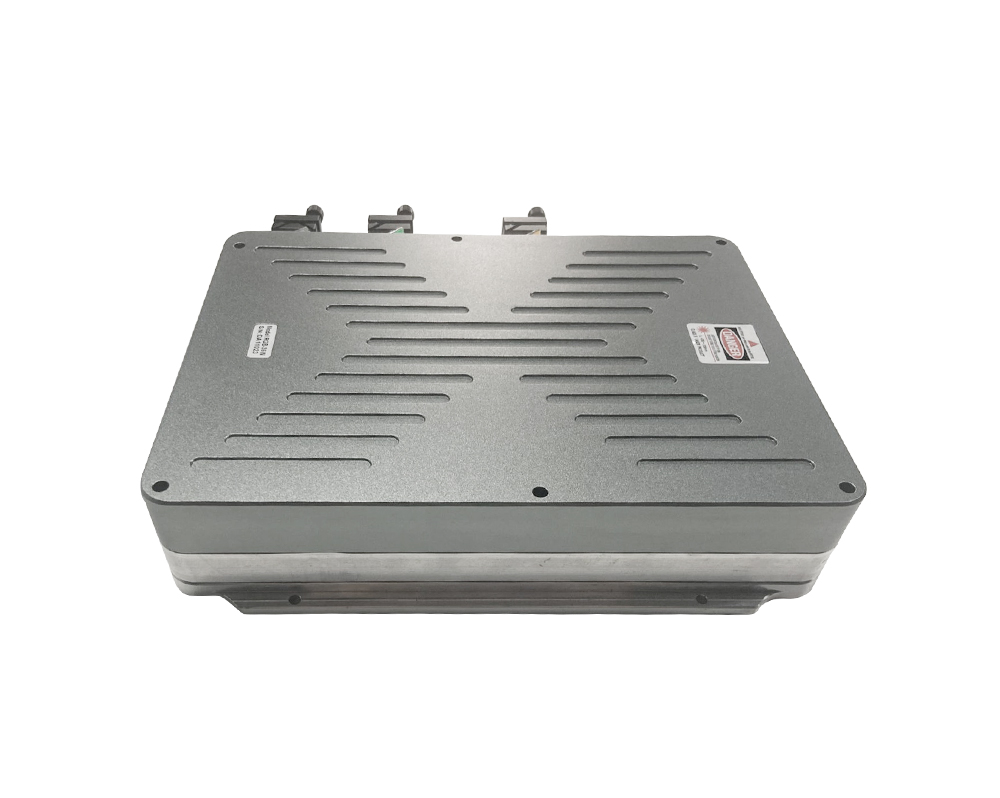

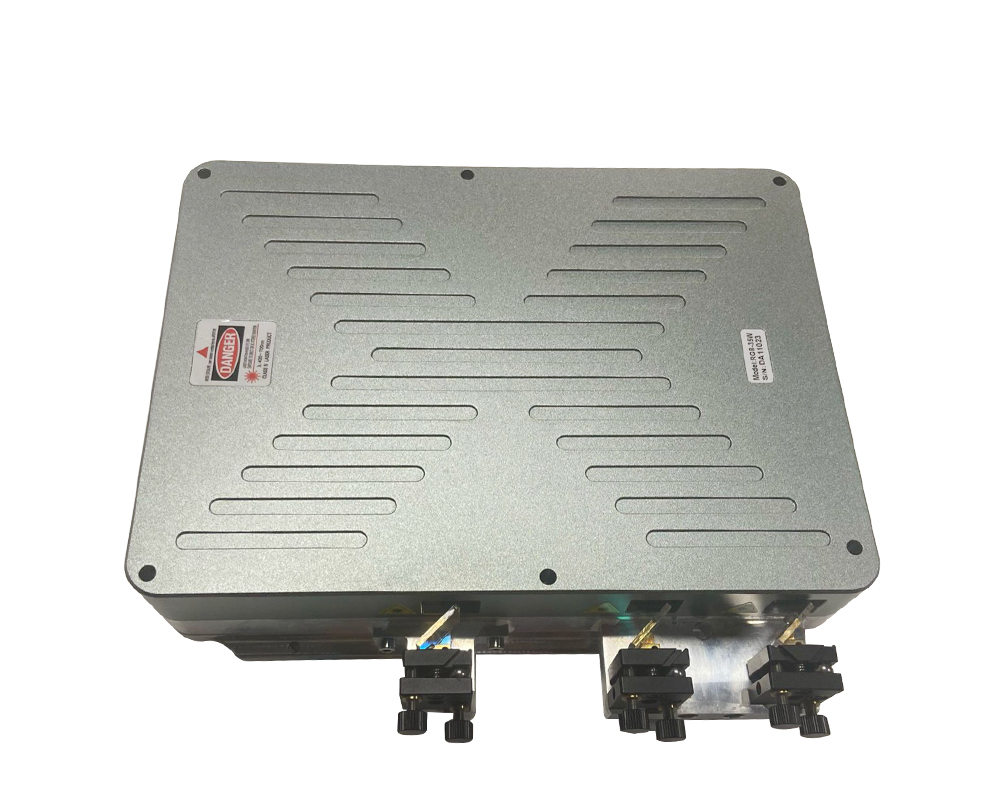

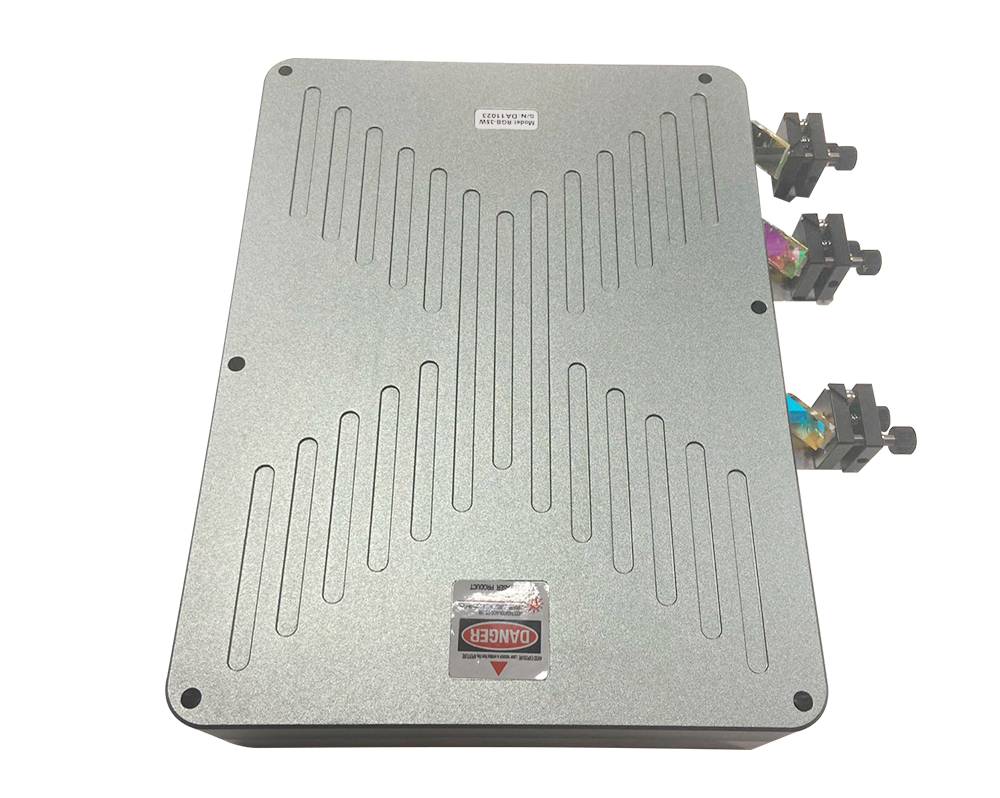

Module of WP35 Series

Featured by classy design, superb light-weight and compact size have been successfullypulling PD30 SERIES on hot selling since it was launched early in 2020.

With appropriate and professional optically optimized, the beam profile of each lasercolourbetween R/G/B is nearly a perfect spot, and all beams match each other in shape,beam size and divergence, ensuring all the mixed colours are overlapped and without anystray beams around them.

We hope this nicely built gear will continuously help our valued customers succeed.

Product Parameters

Video Presentation

Data Download

Specification

Wavelength   range (nm)

638 ± 5

520 ± 5

465 ± 5

Output power   ( W )

R| 10W

G| 12.5W

B|13W

Beam type

FAC diodes| corrections

Power   stability ( rms , over 4 hours)

<1

Operating   mode

CW

Light spot   at aperture(1/e 2 , mm)

8*7

Light spot   at 10 meters (1/e2, mm)

17*20

Light spot   at 20 meters (1/e2, mm)

25*27

Beam   divergence angle ( mrad )

1.1 m Rad

Warm-up   time(minutes)

<1 minute

Light output   height (mm)

40.25

Working   temperature()

-20~40

power   supply

DC48V

PSU: LMF500-23B48UH

TTL   control (0/5V)

Analog   modulation (0~5V)

>2V ON , <2V OFF

≈0.12V~4.95V

Life expectancy (hours)

10000

Warranty   time

2years
