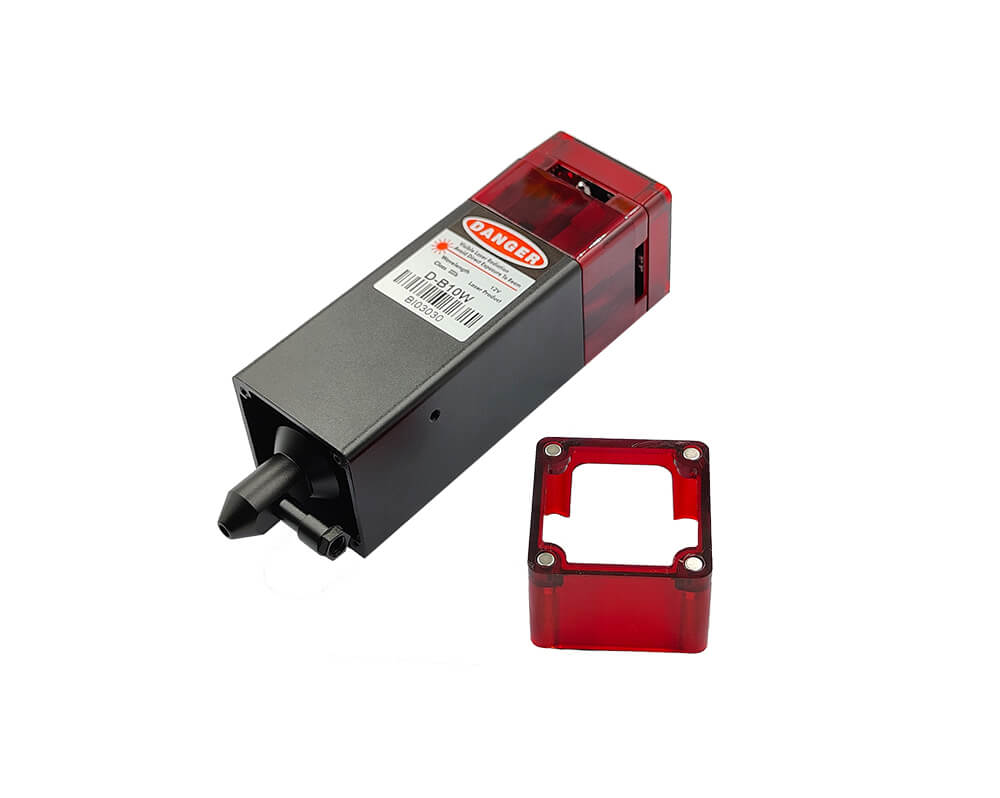

D-B10W

【WIDE COMPATIBILITY】The Laser head kit can be used for laser engraving, CNC Router. Compatible with Most Laser Engraving Machine. Easy to assemble, all aluminum alloy structure design, anodized.

【ULTRA-FINE COMPRESSION LASER】The laser power is 10W, the high-power engraving speed is faster, and the accuracy is higher. The ultra-fine laser focus area is reduced to 0.08mm^2. The high-density laser can easily cut 10mm thick wood and 5mm black Acrylic; can directly engrave 304 mirrors stainless steel (no need to blacken for anti-reflective treatment) Alumina and ceramics.

【WIDELY USED】Main applications of the laser module cutting: cutting, metal engraving, drawing depth engraving, etc. (Especially good at cutting, It can cut wood (3-10mm). It supports metal engraving non-reflective materials, and depth of engraving (0.5-3mm wood). Supported engraving materials: Wood, gray paper, leather, bamboo, blackening plastics, rubber, Bone, Coated glass, Black acrylic, etc.

Product Parameters

Video Presentation

Data Download

Specification

Wavelength455±5nm
Optical Power≥9W
Laser ClassificationClass 4
Spot ShapeNearly square spot
Focal spot size0.08*0.153 mm
Focus Length30mm±0.5mm
Working modeCW
Divergence5 mrad
Lenses materialsFocusing lens-K9,Window lens - quartz
