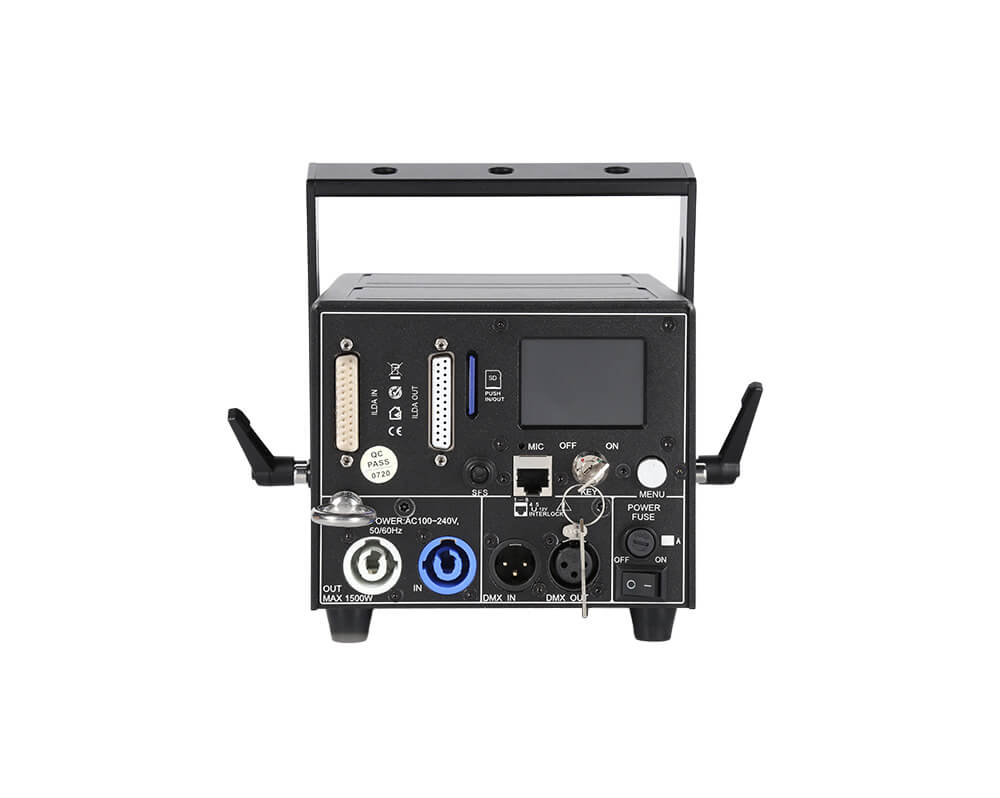

PD3

This is a full-color RGB laser, diode-based laser system designed for clients who need impact aerial beam effects, with the ability to produce laser graphics, logos and text.

A very affordable solution for first-time users and it is often used in bars, small clubs, private parties, or home use. Compact bright green laser with plug & play operation projecting in-air beam, waves, and tunnel effects. Perfect for creating a fun atmosphere at home parties, small bars, and mobile DJ events.

Over the years, thousands of PD3 lasers found their customers worldwide. PD3 systems have a great reputation and hold their price up well.

Product Parameters

Video Presentation

Data Download

Specification

ModelsPD3000A-RGBPD4000A-RGBPD3000-RGBPD4000-RGBPD5000-RGBPD5500-RGBPD6000-RGBPD2000-GPD3000-G
Source | TypeSemiconductor diode | RGB laser projector
Suitabilityindoor laser displays [atmospheric, abstract, text, animations]
Features

Safety: Emission delay,  Scanfail protection, Mechanical shutter(on request), aperture masking -plate;

Good beam, highly compact & seal designed housing, IP54 dust-free

Beam Size@Aperture[mm]2.5*5mm
Divergence(full angle)<1.2mrad
System controlAuto, Sound, SD-card, Stand-alone, Master-slave, DMX512, ILDA
Scanning System36Kpps ILDA@8°,MAX±30° ( (measured data))
Wavelength [nm]R638/ G520/ B445
Laser Power [mW]

600mW

900mW

1500mW

1200mW

900mW

1800mW

650mW

900mW

1500mW

1300mW

900mW

1900mW

1500mW

1000mW

2500mW

1800mW

1100mW

3100mW

1800mW

1000mW

2800mW

2000mW3000mW
Modulation [kHz]100 | analogue
Power Supply100~240V 50~60Hz
Power Consumption [W]<120W
Weight [kg]4.26Kg
Size [WxHxD, mm]156*224*125mm
CoolingHeatsink+Casting Aluminum Housing+Fans (at bottom)
PackagingCarton+foam;  (Pelicase - available on request)
Operation temperature [°C]minus 20℃ to 40℃
