CF20000-RGB

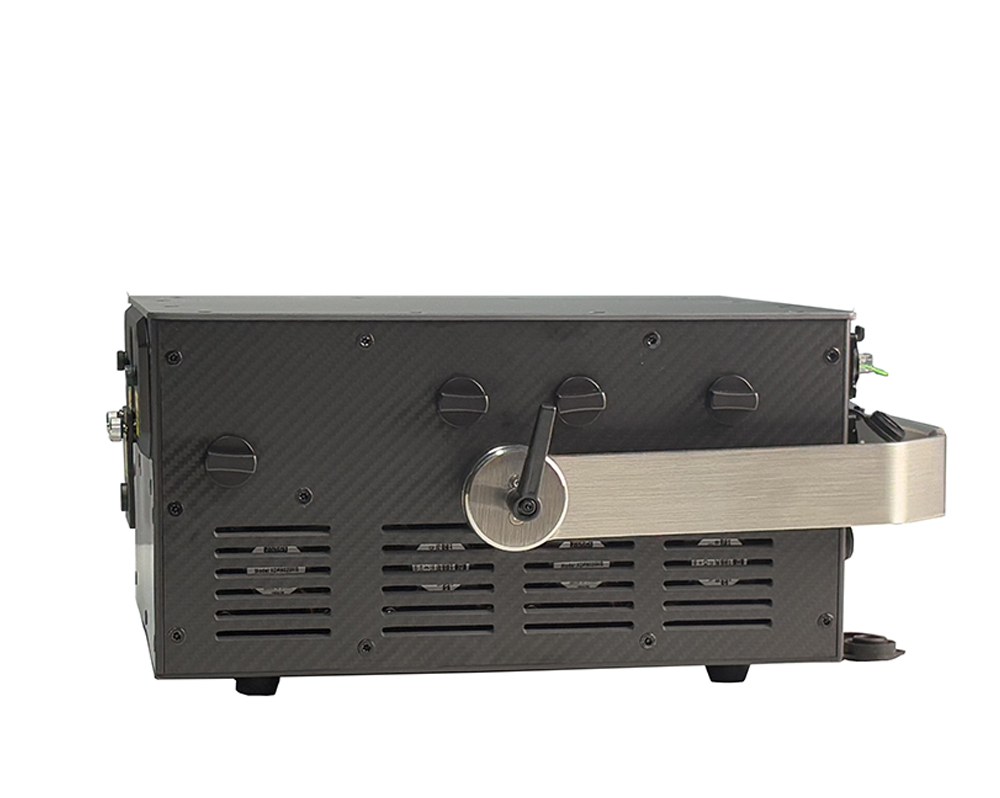

CF20 was recently released in Aug 2024, by launching these new series, the power in the range 20W and 24W will be free from the bulky and heavy-duty enclosure. Now these strong lasers are equipped in a super robust & lightweight enclosure made of Carbon-fibre, utterly reducing the device's both weight and dimension, and this will help for cost-effective transportation.
Besides, the compact laser system will come with an external window for RGB laser colour alignments, which will let you easily access the dichroic optical mounts without removing the whole top cover of the projector.

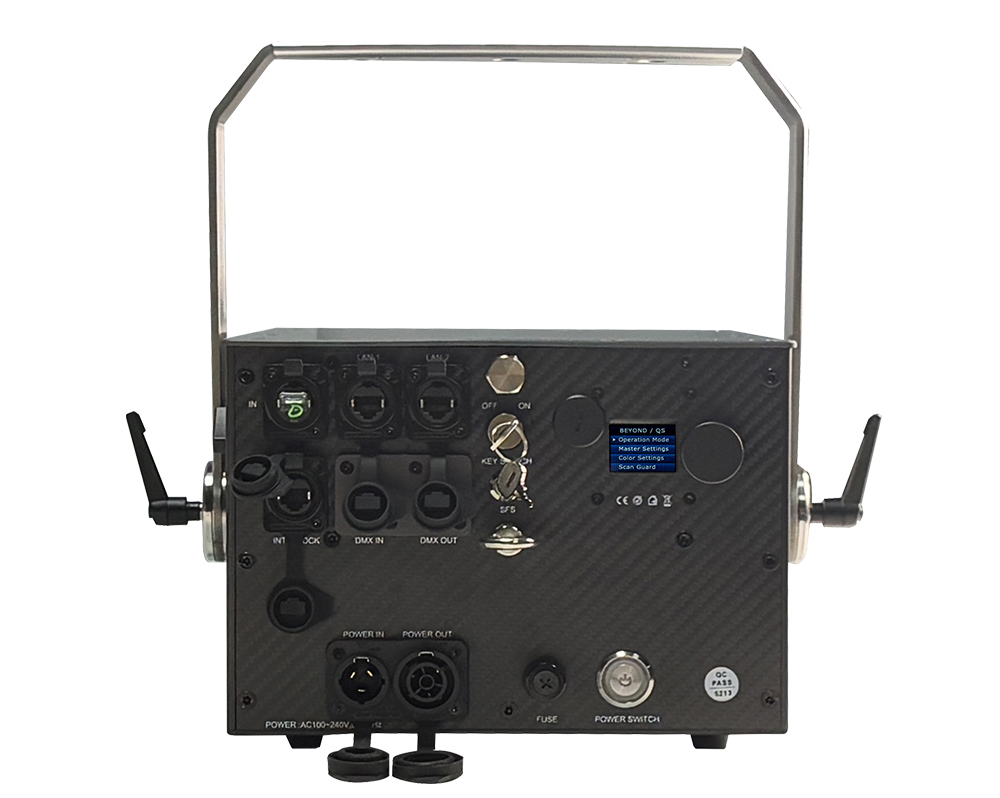

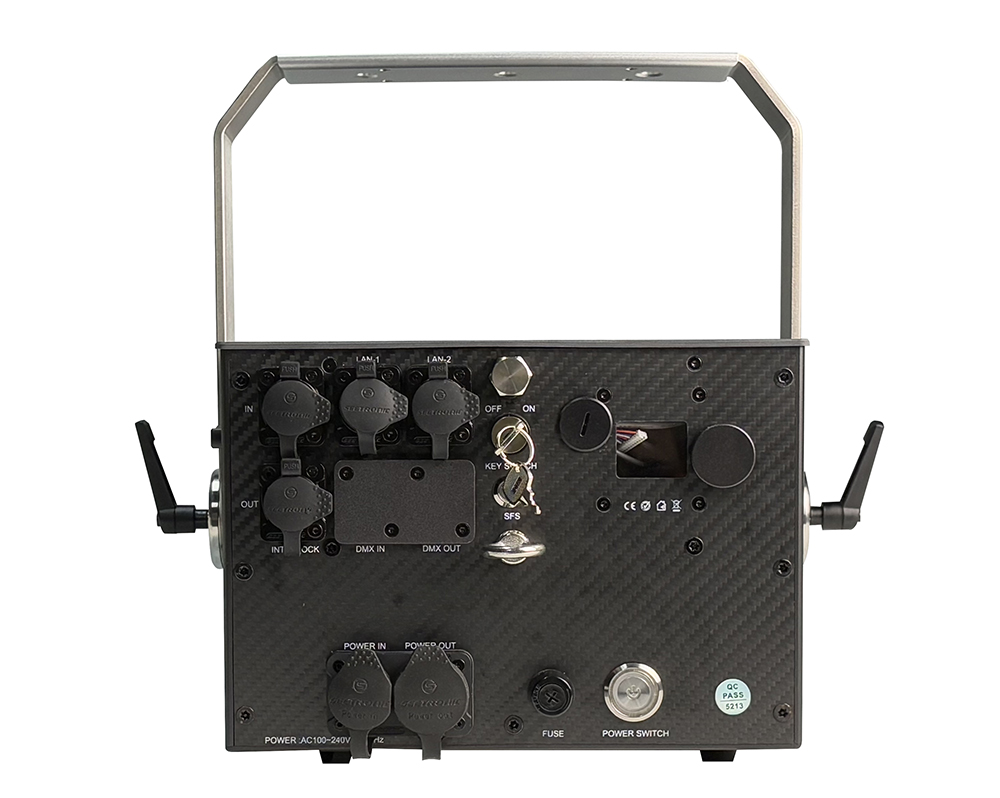

The new products also comply with laser safety requirements that they are covering the following features: Safety key, Remote/interlock, mechanical shutter, Scan-fail safety switch, cover interlocks and Laser Emission delay.
The most important improvement for the new releases is that, we’re using the latest technology of Digital driver(s) for the lasers, and thus the laser outputs can be operated in great dimming linearity and precisely perform those desired colours such as Cyan, Yellow, Orange, Purple, and Magenta, etc

Product Parameters

Video Presentation

Data Download

Specification

ModelCF20000-RGB
Source | Type:Semiconductor diode | Full-colour RGB laser projector
Suitability:Indoor/outdoor laser displays [atmospheric, abstract, text, animations]
Beam Size@Aperture[mm]6.5*7.0mm
Divergence(full angle)1.0mrad
System controlAuto, SD-Card, DMX512 , ILDA ( FB4 on request)
Scanning System40kpps ILDA@8°, scan angle 60° max
Wavelength [nm]R|638     G|520nm  B|445nm
Laser head Power [mW]R|5600   G|6000     B|8500
Total Output [W]20W
Modulation [kHz]100 | Analogue
Power Supply100~240V /50~60Hz
Power Consumption [W]<300W
Weight [kg]12.80Kg
Size [WxHxD, mm]373*256*189mmmm
Cooling:Heatsink+TEC Cooling+Carbon-fiber+Fans
Packaging:Road case
Operation temperature [°C]:minus 20℃ to 40℃
